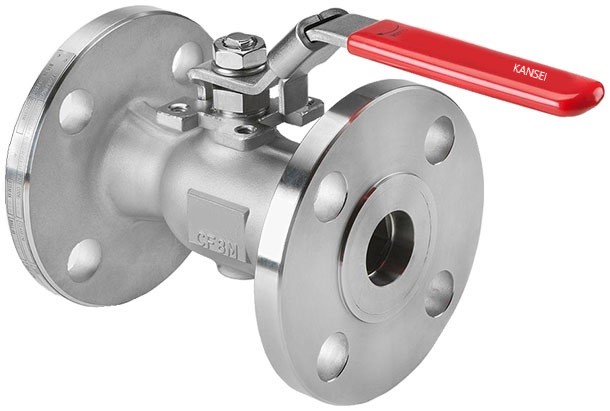

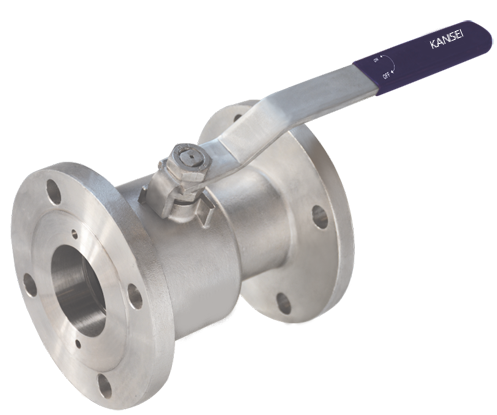

Model K1: One piece, Fire safe-antistatic design, Reduced bore, Flange end (150#, 300#)

One Piece design features eliminates any possible and potential leak paths. Insert holds the internal assembly in position. This creates a positive metal to metal sealing between body and insert which eliminates the leakage through flange. Ideally suitable for use in oil and gas production, refining and chemical applications. Body material and wetted trim components confirms to NACE standard MR 0175. Fire safe and Anti static design where Hazardous areas with handling of flammable fuels, gases or chemicals are in use.

Technical Data :

Size Range: DN 50(2") - 200(8")
Pressure rating : ASME Class 150 to 300
Temperature range : Upto 260 deg. C
Seat : PTFE / Carbon Reinforced PTFE
End Connections : Flanged ASME B16.5
With & Without ISO PAD

Valve Specifications:

VALVE SIZE	ØA	ØB	C	D	STEM CONNECTION	TOP FLANGE
DN	Bore	150#	300#	C to T	150#	300#	E	F	K	H X G	Keyway	No. of Holes	Hole Dia	PCD
50	38	150	165	47	178	216	89	277	112	19 X 12.7	N/A	4	M8	70
80	63	190	210	85	203	282	103	427	158	22 X 15.9	N/A	4	M10	102
100	76	230	255	97	229	305	114	427	170	22 X 15.9	N/A	4	M10	102
150	102	280	320	124	267	403	133	625	220	Ø32	10 X 10	4	M12	125
200	150	345	380	159	292	419	161	966	255	Ø32	10 X 10	4	M12	125

All dimensions are in mm.

Notes :

E = Handle dimension when the handle is in the extended position.
H = Diameter of the stem connection.
g = Dimension across the stem flats.
Dimensions are nominal to ± 1mm.

Standard Trims :

Valve Material Specifications:

CLASS	BODY MATERIAL	INSERT MATERIAL	SEAT	BALL MATERIAL	STEM MATERIAL	BODY SEAL	WRENCH
150	WCB	WCB	PTFE	CF8	304 S/S	PTFE	MS
150	WCB	WCB	PTFE	CF8M	316 S/S	PTFE	MS
150	CF8M	CF8M	PTFE	CF8M	316 S/S	PTFE	SS
300	WCB	WCB	Carbon R'PTFE	CF8M	316 S/S	PTFE	MS
300	CF8M	CF8M	Carbon R'PTFE	CF8M	316 S/S	PTFE	SS

General Notes

Tailored customization and automation to meet specific customer requirements.
Standard certificate of compliance issued to EN10204 Type 3.1.
Maintaining safety stock levels as per customer specifications.
Every valve undergoes comprehensive factory testing and inspection in accordance with industry standards.
Availability of various trims to suit unique customer needs.
Assisting customers with sourcing additional product requirements.
Consultation services with the factory for torque and other technical details.
